Shallow depth, high performing louvres, offering excellent protection against wind-driven rain penetration and very good airflow.
EINTRITT
AUSTRITT
Features & Advantages
- Komplexes extrudiertes Lamellen-Design in vertikaler Anordnung für maximale Regenabwehrleistung
- Channels in blades, jambs, and mullions to collect and drain water from the louvred area
- Visible interlocking mullions to line up with other façade elements
- Compact and lightweight design, ideal for curtain wall or glazing applications
- Sichtschutz aus jedem Winkel
- Werden als vorgefertigte Module für eine effiziente Montage an die Baustelle geliefert
Applications
- Where reliable resistance to wind-driven rain is a priority
- Where using a large plenum behind louvres is impractical due to cost or space considerations
- Where sensitive equipment will be housed close to the louvre system
- Where louvres are to be fitted into curtain walling or glazing system
HAUPTMERKMALE
- Lamellenausrichtung: Vertikal
- Pfosten-Typ: Sichtbar
- Lamellentiefe: 82 mm
- Lamellenabstand: 22 mm
- Gewicht: 18 kg/m2 basierend auf einer Modulgröße von 2 m x 2 m
Laden Sie das Datenblatt für Schnittdetails herunter
LEISTUNG
ZUSAMMENFASSUNG
- Klasse der Regeneindringung: A bis zu 3,5 m/s
- Luftstrom-klasse: 2 (Eintritt und Austritt)
- Luftstromkoeffizient Ce(Eintritt): 0,326
- Luftstromkoeffizient Cd(Austritt): 0,388
EINTRITT
AUSTRITT
LEISTUNG BEI WINDGETRIEBENEM REGEN (EN 13030:2001)
Kernluftwechselrate (m/s) | 0,0 | 0,5 | 1,0 | 1,5 | 2,0 | 2,5 | 3,0 | 3,5 |
---|---|---|---|---|---|---|---|---|
Klasse der Eindringung: (13 m/s und 75 mm/h) | A | A | A | A | A | A | A | B |
Wirksamkeit (%) | 100 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Lüftung | Eintritt-Verlustkoeffizient Ce | 0,326 | Klasse 2 | Austritt-Verlustkoeffizient Cd | 0,388 | Klasse 2 |

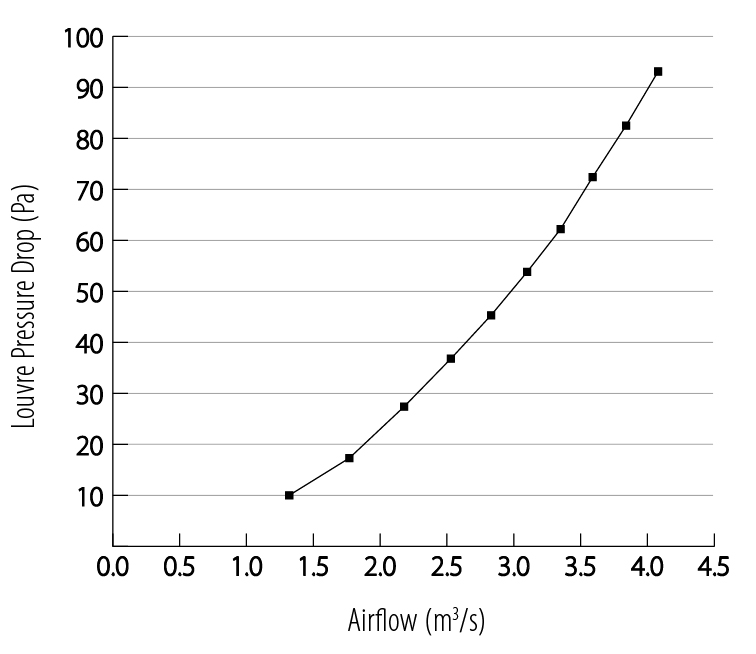

WIDERSTAND GEGEN LUFTSTROM
EINTRITT (Ce)
AUSTRITT (Cd)
Note: Basierend auf einer Größe von 1 m x 1 m. Kleinere Wetterschutzgitter können einen höheren Druckabfall haben.
MATERIALIEN UND OBERFLÄCHEN
MATERIALIEN
- Aluminiumlegierung 6063-T6
OBERFLÄCHENOPTIONEN
- Walzblank
- Klar oder farbig eloxiert
- Polyester Pulverbeschichtung matt (Standard) oder glänzend
OPTIONALE EXTRAS
- Geschlossene Paneele (einwandig oder isoliert)
- Vogel-/Nagatier-Schitzgitter, Insektenschutzgitter
- Wetterschutzgitter-Türelemente
- Bewegliche Lamellen
Spezifikation
Der Hauptgrund für die Verwendung von Louvres besteht darin, die Luftbewegung zu ermöglichen. Die Spezifikation von Wetterschutzgittern ist ein Gleichgewicht zwischen Form und Funktion, wobei das Aussehen der Wetterschutzfassade eine wichtige Rolle im Auswahlprozess spielt.
